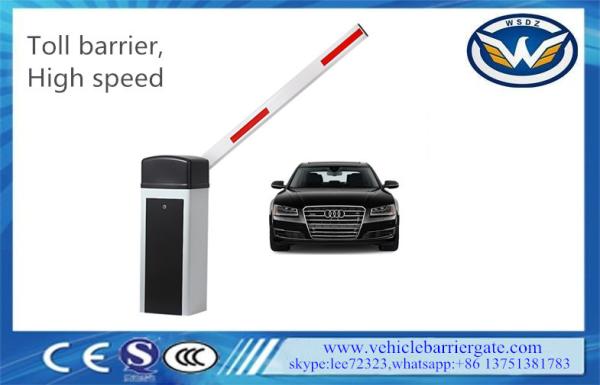

Max 100m Distance Remote Control Vehicle Barrier Gate Car Stopper
Application:
Barrier Gate with aluminum alloy arm uses the third generation motor. It is stable and has long service life performance, running three million times. And the barrier can work with parking system very well, and can be used in door and outdoor.
Parameters:
| Name | Barrier Gate | Application | Parking System |
| Speed | 1.5/3/6 second | Max Boom Length | 6m |
| Power Supply | AC220V/AC110V | Rated Power | 80W |
| Motor Rotational Speed | 1400rpm | Protection Degree | IP44 |
| Working Temperature | -35℃~60℃ | Humidity | ≤90% |
| Remote Control Distance | ≥30m, ≤100m | Feature | Wheel Clutch |
| Net Weight | 44kg | Gross Weight | 49kg |
| Certificate | CE | Boom Type | Octagonal boom |
Functions & Features:
⑴ Auto closing
⑵ Thermal radiates rapidly, no thermal protection
⑶ No need to change the balance spring when changing the booms
⑷ Adopts the 3rd generation WEJOIN machine core
.⑸ Supports the infrared photocell for anti-bumping function (optional)
⑹. Supports the external and internal vehicle loop detector (optional)
⑺ Advanced manual release
⑻. RS485 communication module (optional)
⑼ Boom can rise and fall on left/right side by setting on the same machine
⑽ Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
⑾ Special art and craft makes out the most modernized and fashionable housing
⑿. Safety photo electricity limit switch
Motor Speed and Boom Type:
| Boom type | Boom Length(M) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6M≥L＞4.5M | 6S | H=0.8M |
| 4.5m≥L＞3M | 3S |
| 3m≥L | 1.5S |
| Folding boom 90 degree | 5m≥L＞3M | 6S |
| 3m≥L | 3S |
| Folding boom 180 degree | 5m≥L＞3M | 6S |
| 3m≥L | 3S |
| Fence Boom Two-level | 5m≥L | 6S | H=0.9M |
| Fence boom Three-Level | m≥L | 3S | H=1.5M |
Selection of spring.
| Spring type | Diameter | Spring Length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
the spring is too tight, you need release the spring a little, then test it again.
see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
As for this, it means the resistance on controller board is broken, if you have professional tools to check,
then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
the model is not good, and the gear doesn't fit each other tightly.
the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
To check the loop cable first, because the loop cable maybe brokem
To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
6. Why does the arm wave a lot when opening and closing?
The spring is very tight
The Screw touches the rubber absorption tightly, need to reset again.
7. Rubber linning installation suggestion:
It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
The place with many vehicles come and go, like shopping center, carpark area.
8. Can you accept OEM/ODM order?
Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
